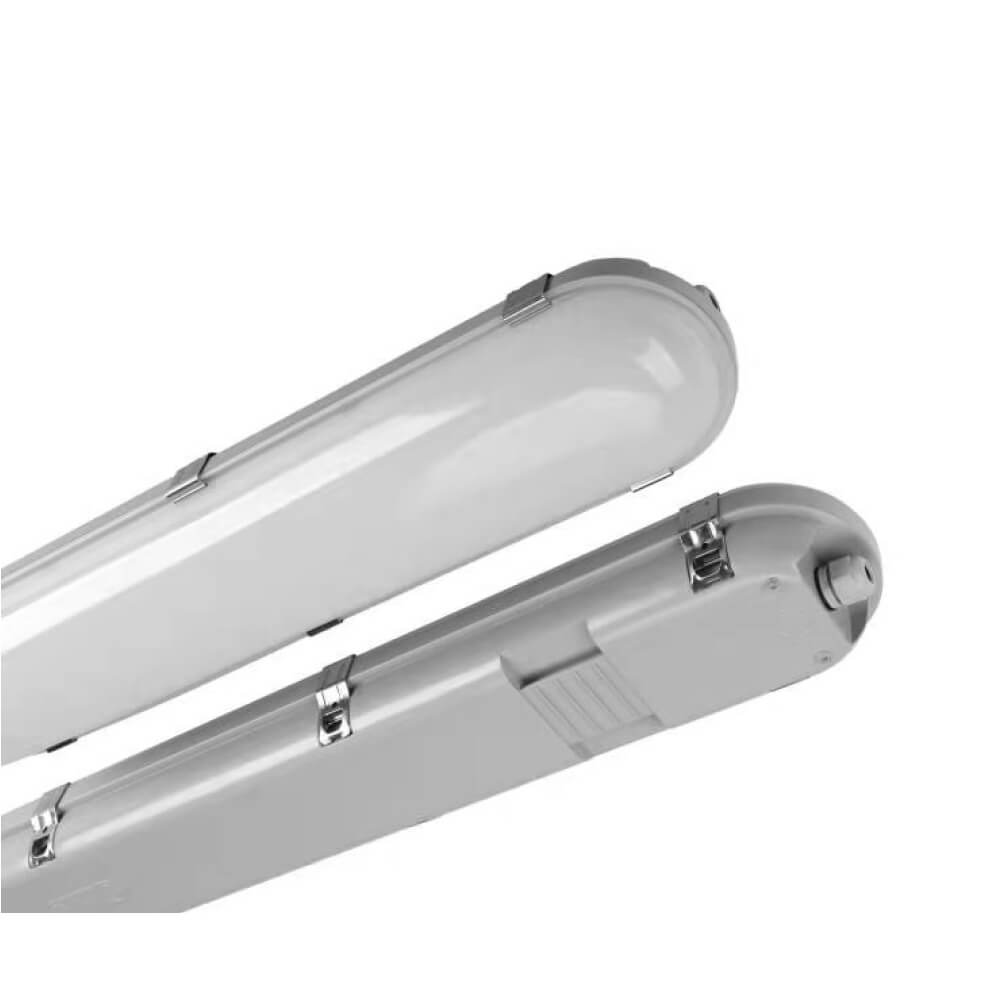

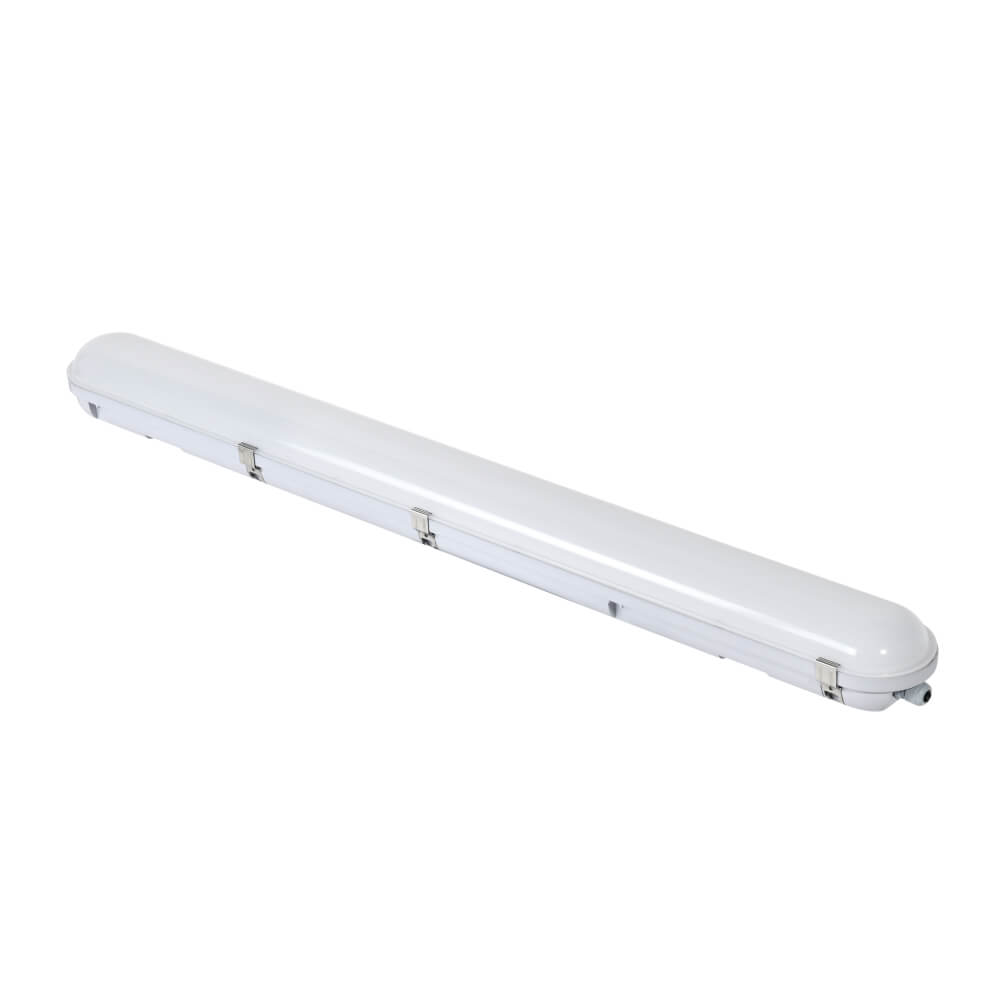

Durable Round Lens Halcon HG-L223 LED Light for Industrial Environments

Halcon HG-L223 industrial vapor-tight LED light with round lens and die-cast aluminum housing for wet environments

LED Vapor Tight Light Fixture Outdoor Waterproof LED Vapor Proof Light Fixture IP65 UL Approved 100-277Vac Input Voltage

Power selection: 15W/20W/25W, 30W/40W/50W, 40W/50W/60W
130 LPW, comes in 2ft, 4ft
Waterproof Rating: IP65
Qualifications: DLC Standard/DLC Premium. ETL/CETL List. NSF certified.
Emergency 90-min Battery Backup

Mode: HG-L223

Size:2ft, 4ft

Watts:15W/20W/25W, 30W/40W/50W, 40W/50W/60W

Lumen:3250 lm-10400 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Quantity:

Overview

Specification

Description

Illuminate Harsh Environments with Halcon’s Rugged Round Vapor Tight LED Lights

Engineered for wet industrial spaces, the Halcon HG-L223 vapor-tight LED delivers powerful illumination in a rugged round design. With an IP65 rating, these LED lights thrive in high-moisture areas like factories, parking garages and workshops.

Flexible Sizing From 2-8 Feet

Available in 2 and 4 foot sizes, the adaptable HG-L223 can be scaled to fit your application. Our adjustable CCTs (3000K-5000K) and wattages allow you to customize both the color temperature and brightness.

Sleek Round Profile, Heavy Duty Performance

The streamlined round housing withstands both abuses and elements that damage other luminaires. Robust die-cast aluminum resists corrosive agents for long-lasting durability.

Unlock Energy Savings up to 130 Lumens per Watt

By upgrading to Halcon’s LED technology, save on energy costs and avoid frequent lamp changes. The HG-L223 replaces 400W+ metal halide and HPS lighting for upgraded performance.

Depend on Halcon’s vapor-tight LED lights to deliver high-quality illumination even in your most demanding industrial environments. Contact us today to upgrade your lighting.

Specification

Manufacturer：Halcon Lighting
Fixture Type：LED Vapor Tight Light
Lead Time: Ships in 1-2 weeks
Qualifications: DLC Standard/DLC Premium, ETL/CETL List
Voltage: Universal voltage 120-277V
CCT Adjustable: 3000K/3500K/4000K/5000K
Dimmable: 0-10V dimming standard
Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models

Controls Features

Daylight Sensor
Occupancy Sensor
Integral Sensor Receptacle
High-end Trim
Bluetooth

Model: HG-L223
Warranty: 5 years
Wattage Adjustable: 15W/20W/25W, 30W/40W/50W, 40W/50W/60W
CRI(Color rendering index): >80
Lumen output: 3250 lm-10400 lm
Mounting: Surface mount, Pendant/Rod mount (accessories sold separately)

Accessories

SENSOR control, Emergency kits, suspension kits.

Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Specification

	HG-L223-252F	HG-L223-504F	HG-L223-604F	HG-L223-804F
Size	600x110x88mm	1200x110x88mm	1200x110x88mm	1200x110x88mm
Nominal Wattage	25W/20W/15W	50W/40W/30W	60W/50W/40W	80W/70W/60W
InputVoltage	AC 120-277V, 120-347V	AC 120-277V, 120-347V	AC 120-277V, 120-347V	AC 120-277V, 120-347V
Lumen Delivered	3250 lm	6500 lm	7800 lm	10400 lm
Nominal Efficacy	130lm/W	130lm/W	130lm/W	130lm/W
CCT	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K
CRI	>80	>80	>80	>80
Power Factor	>0.9	>0.9	>0.9	>0.9
Dimming	0-10V	0-10V	0-10V	0-10V
Operating Temperature	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty	5 Years	5 Years	5 Years	5 Years

Lighting FAQ

Q: Is it CCT selectable and wattage selectable?
A: Yes, our product offers both CCT and wattage selectable options for versatile usage.
Q: Is it ETL and DLC listed?
A: Absolutely, our troffer is both ETL and DLC listed, ensuring compliance with the highest standards.
Q: Can this product be installed with emergency and dimming PIR Bluetooth sensor?
A: Yes, it can be installed with both emergency backup and dimming PIR Bluetooth sensor.
Q: Do you have stock in the USA?
A: Yes, we maintain stock in the USA for quick delivery.
Q: What’s the lead time?
A:With our US stock, we can ensure 7-15 day lead times to meet your project requirements.
