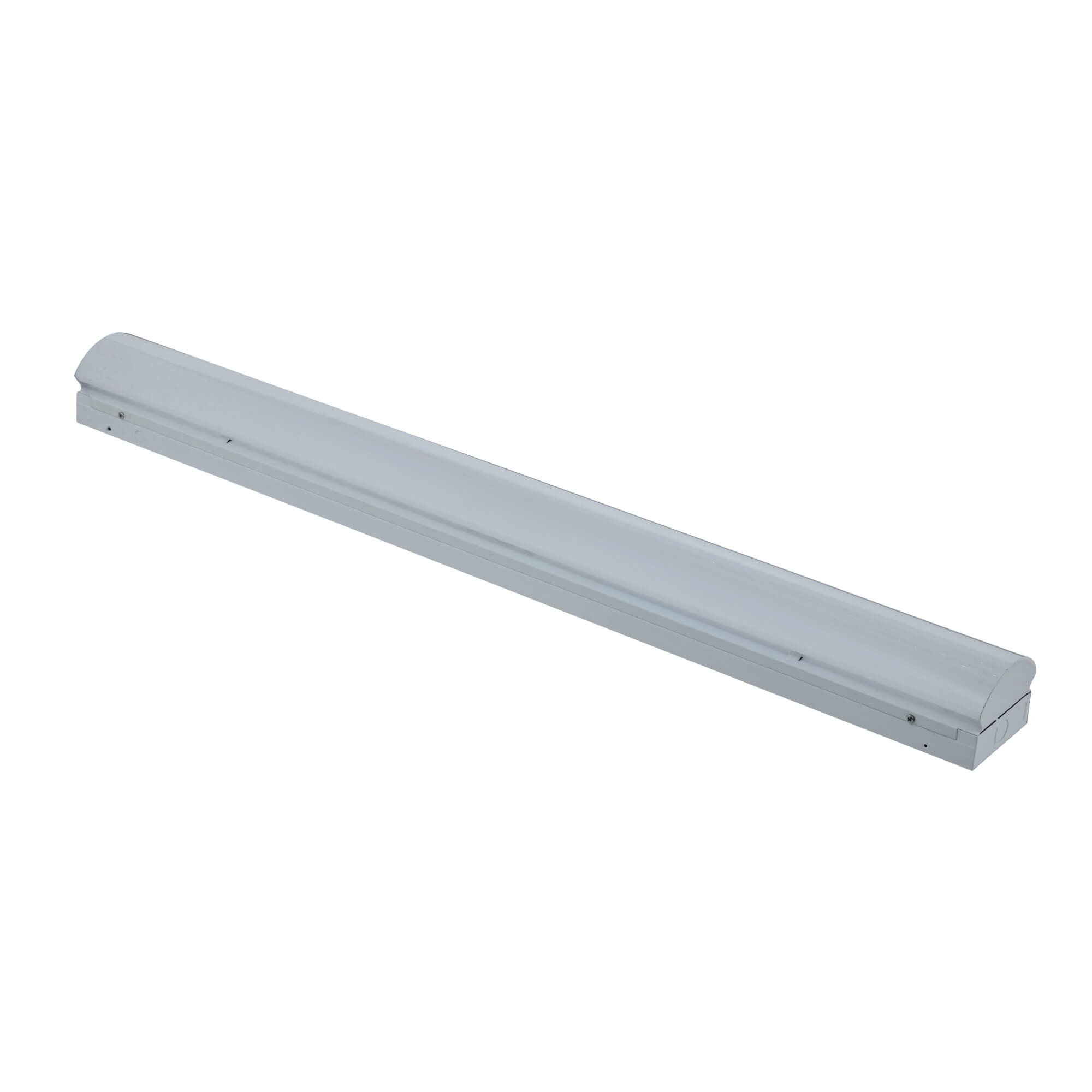

LED Wider Strip Light HG-L206
LED Wider Strip Light HG-L206
LED Wider Strip Light HG-L206
LED Wider Strip Light HG-L206
LED Wider Strip Light HG-L206
halconlighting
LED Wider Strip Light HG-L206
LED Wider Strip Light HG-L206
LED linear light strip diffuser CCT and watt selectable 3000K-5000K (5400 lumen-11475 lumen), 120-277V 0-10V Dimmable ETL DLC listed emergency back and bluetooth sensor technology
LED Wider Strip Light HG-L206
LED linear light strip diffuser CCT and watt selectable 3000K-5000K (5400 lumen-11475 lumen), 120-277V 0-10V Dimmable ETL DLC listed emergency back and bluetooth sensor technology
LED linear light strip diffuser CCT and watt selectable 3000K-5000K (5400 lumen-11475 lumen), 120-277V 0-10V Dimmable ETL DLC listed emergency back and bluetooth sensor technology
LED Wider Strip Light HG-L206
LED Wider Strip Light HG-L206

LED linear light strip diffuser CCT and watt selectable 3000K-5000K (5400 lumen-11475 lumen), 120-277V 0-10V Dimmable ETL DLC listed emergency back and bluetooth sensor technology

The new generation of Linear Strips features field-selectable wattages, CCTs and field-installable controls. Offered in three sizes (2', 4' and 8'), with each providing nine combinations of color temperatures and wattages, as well as optional sensor controls. With its versatility and long life, Halcon new led strip can address a variety of commercial, industrial, retail and residential application needs, including storage/utility, workshop, task or general area lighting.

l   20W-85W various wattage selectable,
l  135 LPW, comes in 2ft, 4ft, 8ft
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l  office, education, health care, hospitality and retail interiors

Mode: HG-L206

Size:2ft, 4ft, 8ft

Watts:20W, 30W, 40W, 60W, 80W

Lumen:2340 lm-11050 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Specification
Video

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


HG-L206-182F HG-L206-244F HG-L206-638F HG-L206-858F HG-L206-858F
Size 606x115x91mm 1206x115x91mm 2438x115x91mm 2438x115x91mm 2438x115x91mm
Nominal Wattage 18W/24W 24W/40W 63W/83W 63W/83W 63W/83W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2340 lm 3120 lm 5200 lm 8190 lm 11050 lm
Nominal Efficacy 130 lm/w 130 lm/w 130 lm/w 130 lm/w 130 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
