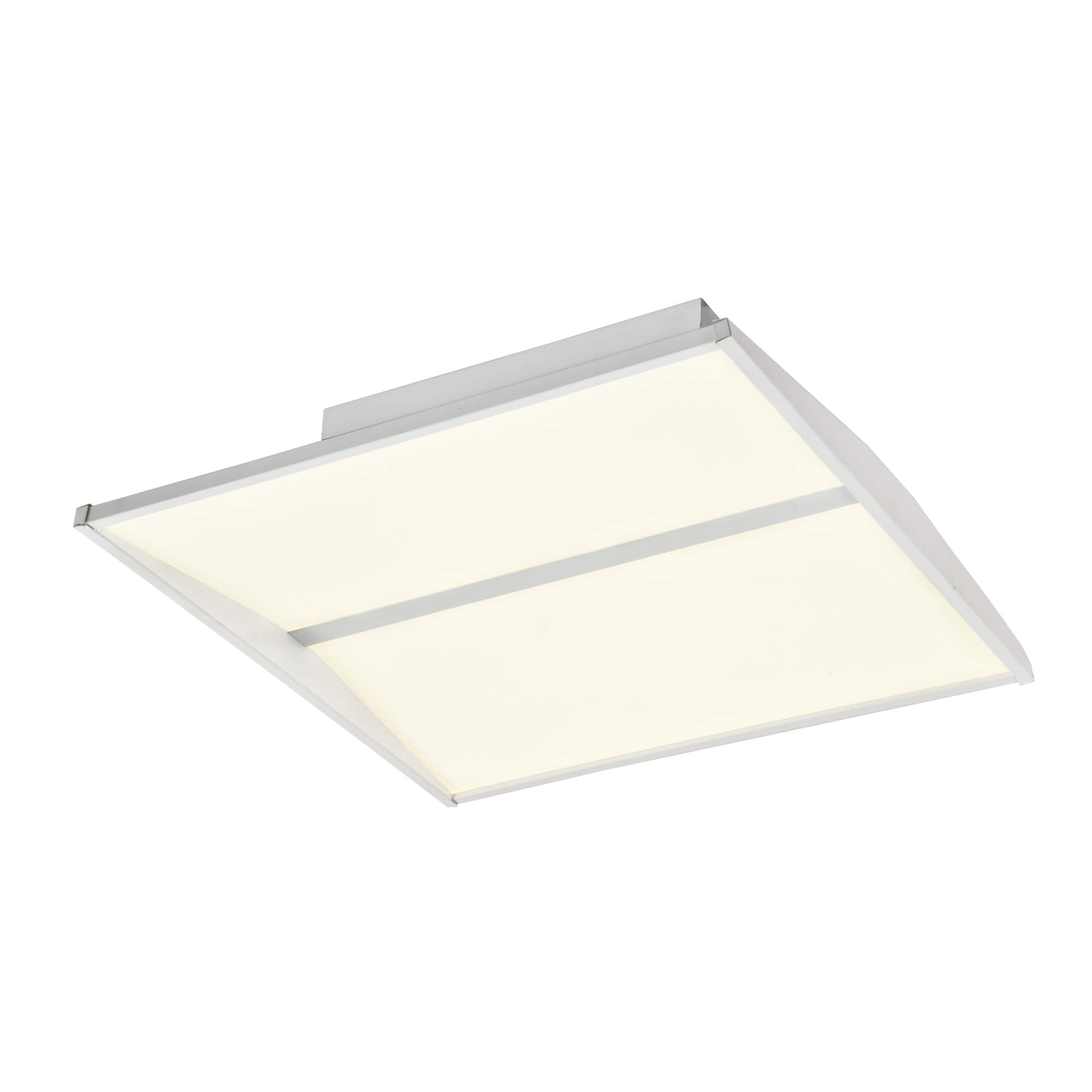

Halcon Indirect LED Troffer Light E2106 with Bluetooth Sensor and Emergency Control for energy-efficient commercial lighting solutions.
Halcon Indirect LED Troffer Light E2106 with Bluetooth Sensor and Emergency Control for commercial lighting installation
Architectural recessed Halcon Indirect LED Troffer Light with Bluetooth sensor and emergency control for energy-efficient lighting in commercial spaces
halconlighting
Halcon Indirect LED Troffer Light E2106 with Bluetooth Sensor and Emergency Control for energy-efficient commercial lighting solutions.
Halcon Indirect LED Troffer Light E2106 with Bluetooth Sensor and Emergency Control for commercial lighting installation
Architectural recessed Halcon Indirect LED Troffer Light with Bluetooth sensor and emergency control for energy-efficient lighting in commercial spaces
LED backlit architectural model troffer 2x2 2x4 1x4 up to 6000 lumen ETL listed 120-277V 0-10V dimming emergency sensor control ready
LED backlit architectural model troffer 2x2 2x4 1x4 up to 6000 lumen ETL listed 120-277V 0-10V dimming emergency sensor control ready
LED backlit architectural model troffer 2x2 2x4 1x4 up to 6000 lumen ETL listed 120-277V 0-10V dimming emergency sensor control ready

LED backlit architectural model troffer 2x2 2x4 1x4 up to 6000 lumen ETL listed 120-277V 0-10V dimming emergency sensor control ready

  • 20W-70W various wattage selectable,
  • 125 LPW, comes in 2'x2', 2'x4', 1'x4'
  • Bluetooth control ready
  • Emergency back up compatibility
  • DLC NLC qualified, attractive for large utility rebates
  • Office, education, health care, hospitality and retail interiors

Mode: E2106

Size:2'x2', 2'x4'

Watts:24W/35W/40W, 30W/35W/40W/50W

Lumen:4600 lm-5750 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Specification
Video

Description

The Halcon Indirect Troffer is an architectural recessed luminaire that combines high efficiency LEDs with high-performance reflective material to emit voluminous, visually comfortable light.
To generate energy savings beyond LED conversion through motion sensing, daylight harvesting, bi-level dimming and other energy-saving functions. A great choice for any location in which you need powerful lighting to a large area.
This type of lighting offers a concentrated light source and an attractive look making it ideal for nearly any commercial or residential application.

Specification

• Manufacturer： Halcon Lighting
• Fixture Type：LED Troffer lighting fixture
• Lead Time: Ships in 1-2 weeks
• Qualifications: DLC Standard/DLC Premium, ETL/CETL List
• Voltage: Universal voltage 120-277V
• CCT Adjustable: 3000K/3500K/4000K/5000K
• Dimmable: 0-10V dimming standard
• Size: 2'x2', 2'x4'
• Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models

Controls Features
  • Daylight Sensor
  • Occupancy Sensor
  • Integral Sensor Receptacle
  • High-end Trim
  • Bluetooth

• Model: E2106
• Warranty: 5 years
• Wattage Adjustable: 24 to 40Watts / 30 to 50Watts
• CRI(Color rendering index):>80
• Lumen output: 4600 lm-5750 lm
• Light efficiency: 115 LP/W
• Mounting: Surface mount, Pendant/Rod mount (accessories sold separately)


Accessories

SENSOR control, Emergency kits, suspension kits.

Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Specification


E2106-22 E2106-24
Size 603x603x50mm 1213x603x50mm
Nominal Wattage 24W/35W/40W 30W/35W/40W/50W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4600 lm 5750 lm
Nominal Efficacy 115 lm/w 115 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80
Power Factor >0.9 >0.9
Dimming 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years

Lighting FAQ

  1. Q: Is it CCT selectable and wattage selectable?
    A: Yes, our product offers both CCT and wattage selectable options for versatile usage.
  2. Q: Is it ETL and DLC listed?
    A: Absolutely, our troffer is both ETL and DLC listed, ensuring compliance with the highest standards.
  3. Q: Can this product be installed with emergency and dimming PIR Bluetooth sensor?
    A: Yes, it can be installed with both emergency backup and dimming PIR Bluetooth sensor.
  4. Q: Do you have stock in the USA?
    A: Yes, we maintain stock in the USA for quick delivery.
  5. Q: What’s the lead time?
    A:With our US stock, we can ensure 7-15 day lead times to meet your project requirements.

Video
