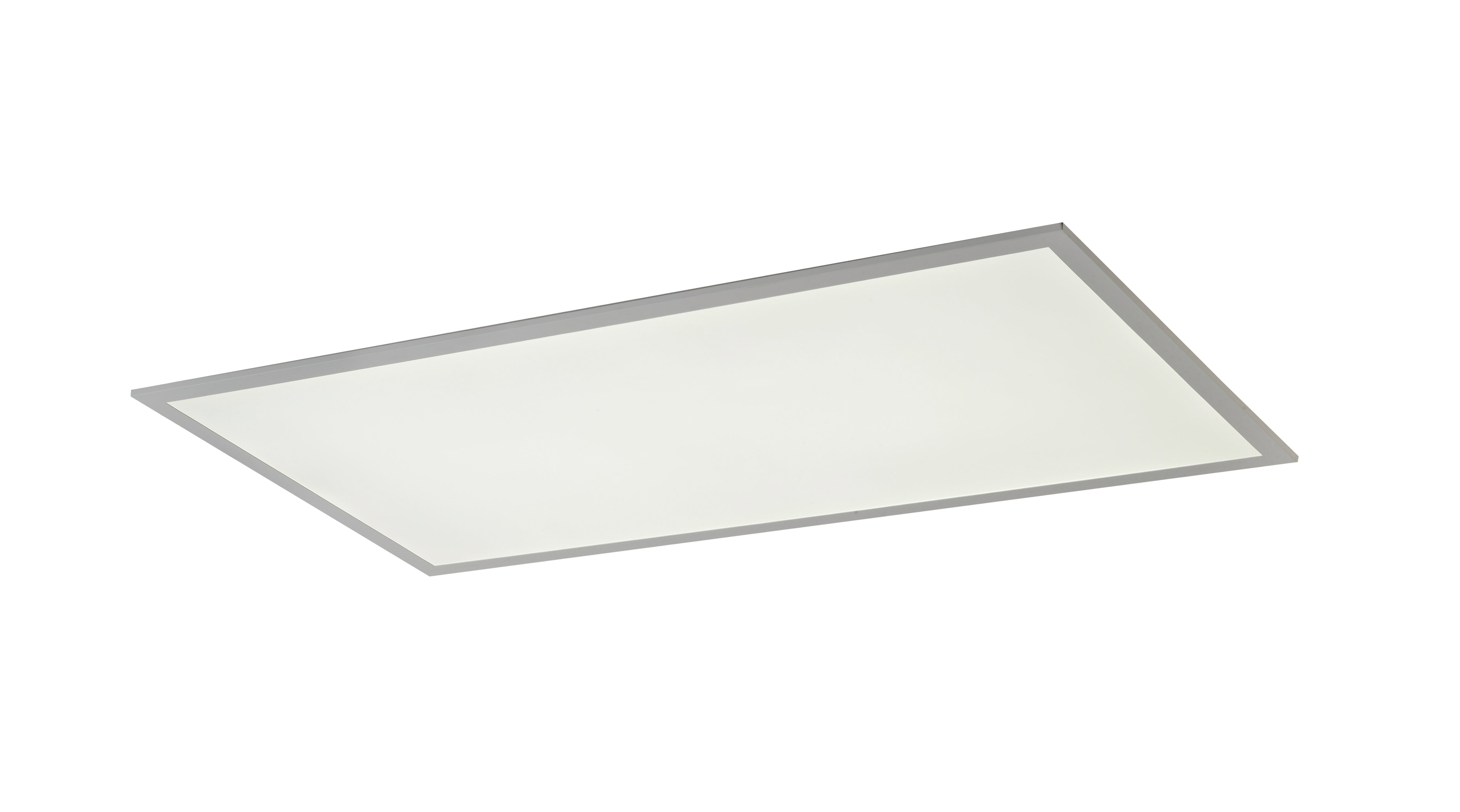

LED Flat Panel Light backlit Surface Mount wattage selectable CCT selectable 120-277V 0-10V dimming

  • 20W-70W various wattage selectable
  • 125 LPW, comes in 2’x2’, 2’x4’, 1’x4’
  • Bluetooth control ready
  • Emergency back up compatibility
  • DLC NLC qualified, attractive for large utility rebates
  • office, education, health care, hospitality and retail interiors

Mode: E2010

Size:2'x2', 1'x4', 2'x4'

Watts:20/30/35W, 30/40/50W, 30/40/50W,

Lumen:4375 lm-6250 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Overview
Use Cases
Specification

Description

Meet the E2010 LED Panel Light: the ultimate game-changer in lighting technology that’s ready to revolutionize both commercial and residential spaces. This sleek powerhouse light is all about customization—with selectable color temperatures and wattages at your fingertips for a personalized lighting vibe. Its slim profile slides right into any ceiling scene, delivering top-shelf aesthetics without compromising on brightness.

But the E2010 is more than just good looks—it’s smart, too. This panel packs a punch with energy-saving features like motion sensors, daylight harvesting, and adaptive dimming to cut down those bills and support Mother Earth. In the event of a power outage, no need to worry; the E2010 keeps shining with its emergency backup. Ideal for illuminating everything from high-end showrooms to your cozy living room, it offers durability, reliability, and quality craftsmanship. The E2010 isn’t just a lighting fixture; it’s a state-of-the-art lighting experience that meets the demands of modern design and efficiency.

Specification

  • Manufacturer:Halcon Lighting
  • Fixture Type:LED Flat Panel Light
  • Lead Time: Ships in 1-2 weeks
  • Qualifications: DLC Standard/DLC Premium,ETL/CETL List
  • Voltage: Universal voltage 120-277V
  • CCT Adjustable: 3000K/3500K/4000K/5000K
  • Dimmable: 0-10V dimming standard

Controls Features
  • Daylight Sensor
  • Occupancy Sensor
  • Integral Sensor Receptacle
  • High-end Trim
  • Bluetooth
  • Model: E2010
  • Size: 2'x2', 1'x4', 2'x4'
  • Warranty: 5 years
  • Wattage Adjustable: 20 to 30Watts / 35 to 50Watts
  • CRI(Color rendering index):>80
  • Lumen output: 4375 lm-6250 lm
  • Light efficiency: 125 LP/W

Accessories

SENSOR control, Emergency kits, suspension kits.

Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Use Cases

halconlighting Computers Office
halconlighting Office Room
halconlighting Office
halconlighting Show Room

Comparison Chart


E2010-22 E2010-14 E2010-24
Size 603x603x40mm 1213x303x40mm 1213x603x40mm
Nominal Wattage 20/30/35W 30/40/50W 30/40/50W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4550 lm 6500 lm 6500 lm
Nominal Efficacy 125 lm/w 125 lm/w 125 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80
Power Factor >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years

Lighting FAQ

  1. Q: Is it CCT selectable and wattage selectable?
    A: Yes, our product offers both CCT and wattage selectable options for versatile usage.
  2. Q: Is it ETL and DLC listed?
    A: Absolutely, our troffer is both ETL and DLC listed, ensuring compliance with the highest standards.
  3. Q: Can this product be installed with emergency and dimming PIR Bluetooth sensor?
    A: Yes, it can be installed with both emergency backup and dimming PIR Bluetooth sensor.
  4. Q: Do you have stock in the USA?
    A: Yes, we maintain stock in the USA for quick delivery.
  5. Q: What’s the lead time?
    A:With our US stock, we can ensure 7-15 day lead times to meet your project requirements.
