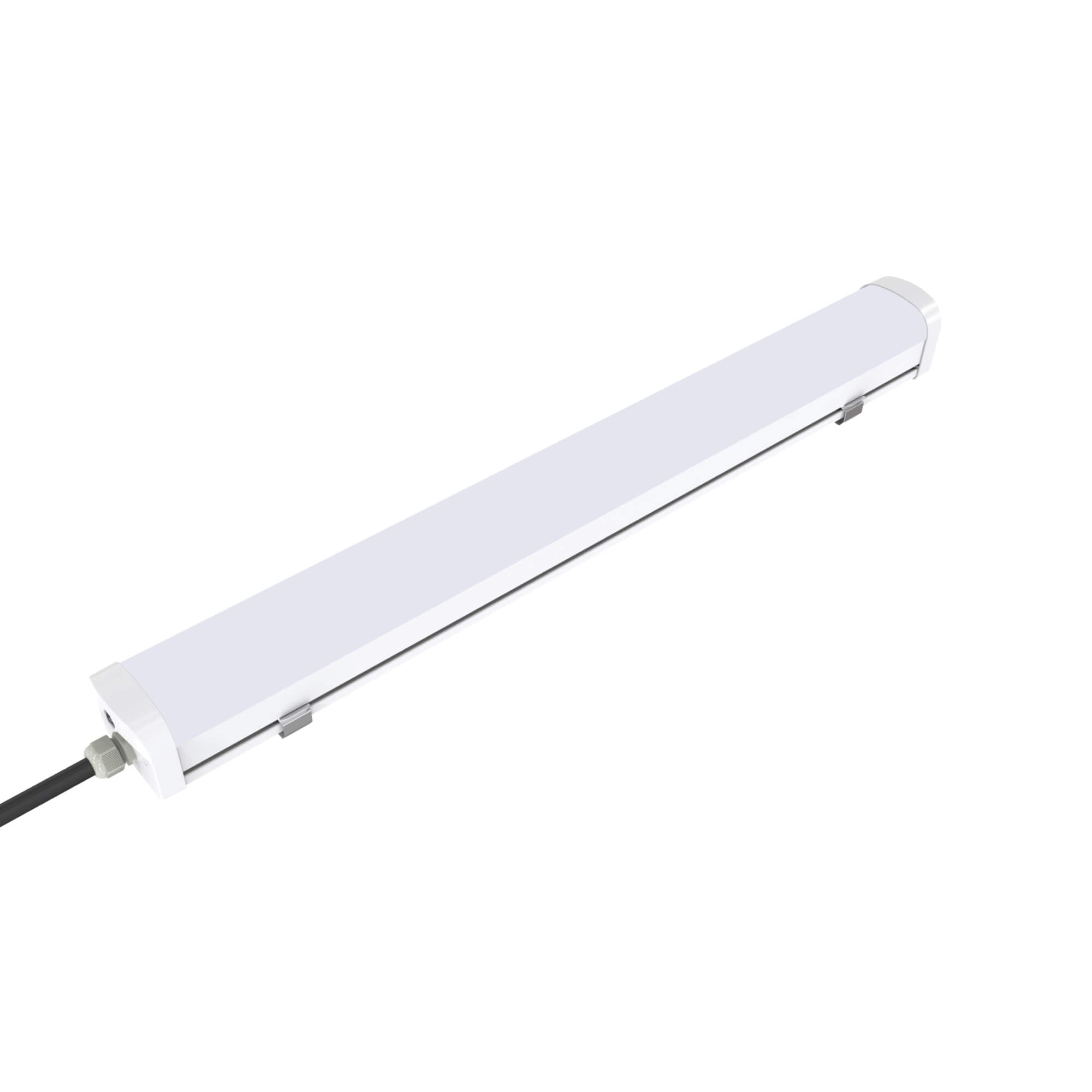

Halcon Lighting's Vapor Tight LED Light fixture, IP65 rated for wet and severe conditions, suitable for industrial locations and food processing plants

Halcon Vapor Tight LED Light fixtures, IP65 rated, energy-efficient and suitable for harsh environments, displaying wall and ceiling mount capability.

Halcon Lighting Vapor Tight LED Light IP65 rated fixture for wet and severe conditions, suitable for industrial and food processing environments

Halcon Lighting Vapor Tight LED light fixture, IP65 rating, ideal for industrial and humid environments

LED Vapor Tri-Proof Vapor tight light fixture 20W-100W Wattage selectable CCT selectable

Name: LED Vapor Tri-Proof Vapor tight light fixture 20W-100W Wattage selectable CCT selectable
Brand: halconlighting
SKU: C2004
Price: 9.99 USD
Availability: InStock

Halcon Lighting's Vapor Tight LED light linkable fixtures are suitable for locations that can experience wet, humid or severe conditions such as industrial locations, metal or wood shop, parking garages, walkways, cold storage facilities with ease, it is IP65 rated and NSF certified which also can be used inside food processing plants. Available for wall mounted, ceiling and suspending applications. These Vapor Tight lights can provide outstanding value when it comes to energy efficiency. Halcon has the solution to meet your harshest lighting needs with a vast inventory of the industry's best lighting option.

l 20W-70W various wattage selectable
l  125 LPW, comes in 2ft, 4ft, 8ft
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l Office, education, health care, hospitality and retail interiors

Mode: C2004

Size:2ft, 4ft, 5ft, 8ft

Watts:18W, 36W, 50W, 60W

Lumen:1950 lm-7800 l

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote

Quantity:

Overview

Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features

• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification

	C2004-182F	C2004-364F	C2004-505F	C2004-608F
Size	660x65x55mm	1260x65x55mm	1560x65x55mm	2440x65x55mm
Nominal Wattage	18W	36W	50W	60W
InputVoltage	AC 120-277V, 120-347V	AC 120-277V, 120-347V	AC 120-277V, 120-347V	AC 120-277V, 120-347V
Lumen Delivered	2340 lm	4680 lm	6500 lm	7800 lm
Nominal Efficacy	130lm/W	130lm/W	130lm/W	130lm/W
CCT	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K
CRI	>80	>80	>80	>80
Power Factor	>0.9	>0.9	>0.9	>0.9
Dimming	0-10V	0-10V	0-10V	0-10V
Operating Temperature	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty	5 Years	5 Years	5 Years	5 Years

LED Vapor Tri-Proof Vapor tight light fixture 20W-100W Wattage selectable CCT selectable

Design and Installation

Feactures

Controls Features

Accessories

Specification
