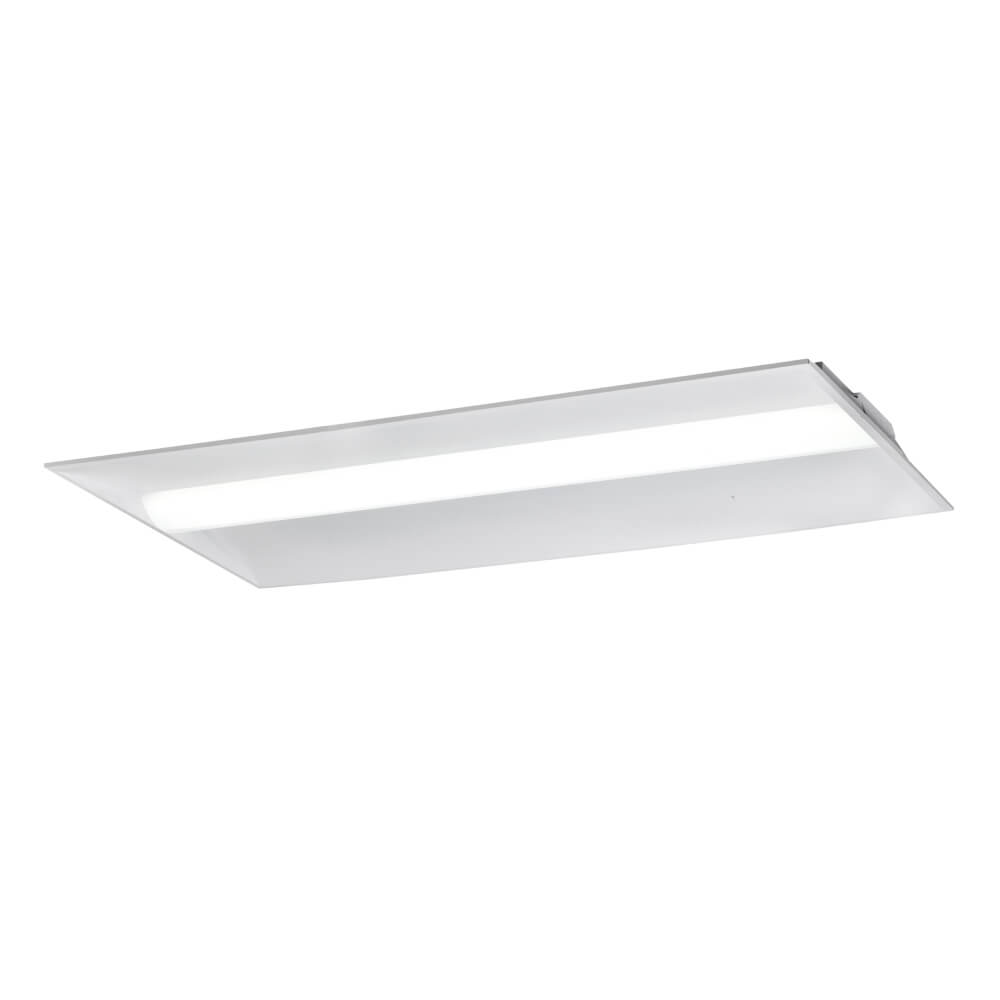

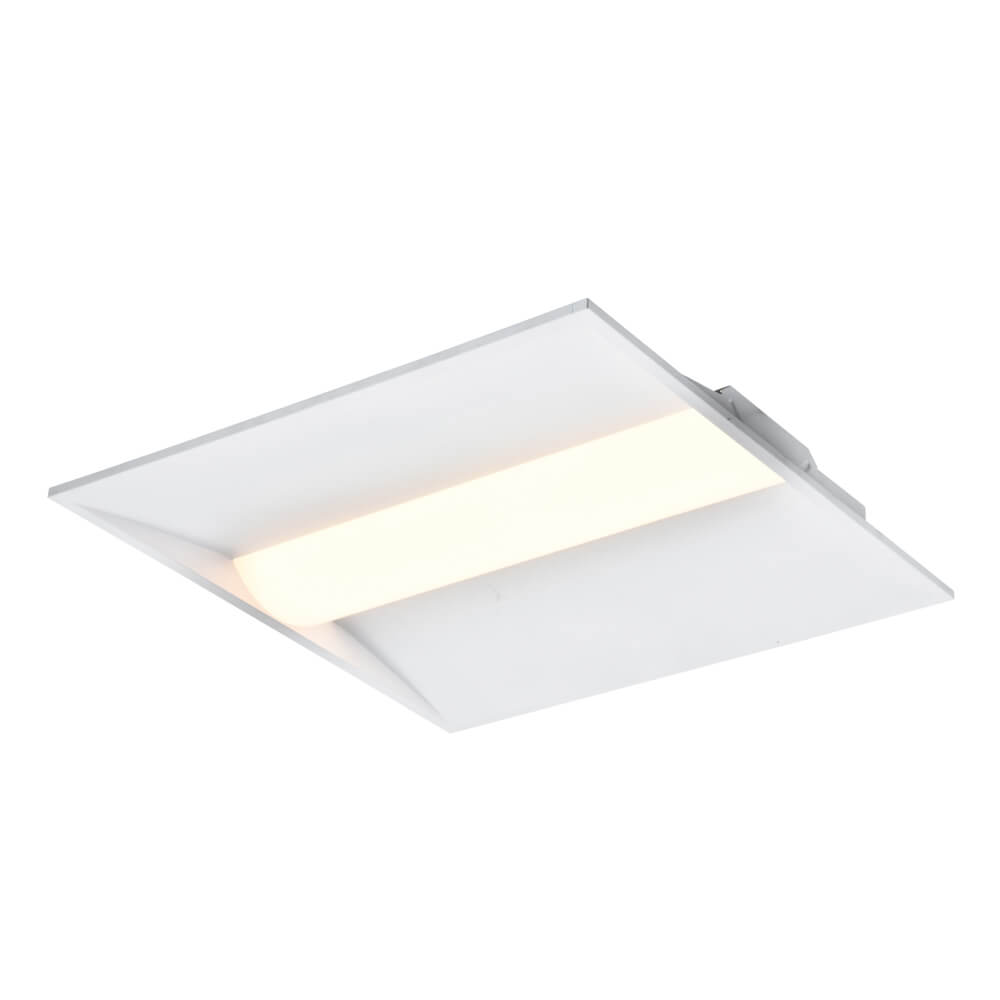

LED Troffer Light HG-L249C with CCT and Wattage Selectable features for energy-efficient modern office lighting.
Halcon LED Troffer Light HG-L249C with adjustable CCT and wattage for energy-efficient lighting in offices and commercial spaces.
Halcon LED Troffer Light HG-L249C with CCT and wattage selectable features for modern offices and energy-efficient lighting design.
Energy-efficient LED Troffer Light HG-L249C with selectable CCT and wattage for modern interiors
Halcon LED Troffer Light HG-L249C with selectable CCT and wattage for efficient modern office lighting
Halcon LED Troffer Light HG-L249C with CCT and Wattage Selection for Energy-Efficient Lighting in Offices and Schools
Energy-efficient LED Troffer Light HG-L249C with selectable CCT and wattage for modern interiors
Halcon LED Troffer Light HG-L249C with CCT and Wattage Selection for energy-efficient office lighting
Halcon LED Troffer Light HG-L249C with CCT and Wattage Selectable features for energy-efficient lighting in offices, schools, and hospitals.
halconlighting

LED center basket troffer power select Color Select 20W to 70W 120-277V 0-10V Dimming Bluetooth sensor Emergency back up ETL listed

  • 20W-70W various wattage selectable,
  • 125 LPW, comes in 2’x2’, 2’x4’, 1’x4’
  • Bluetooth control ready
  • Emergency back up compatibility
  • DLC NLC qualified, attractive for large utility rebates
  • office, education, health care, hospitality and retail interiors

Mode: HG-L249C

Size:2'x2', 1'x4', 2'x4'

Watts:20/30/35W, 30/40/50W, 50/60/72W

Lumen:4375 lm-9000 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Overview
Use Cases
Specification

Description

Introducing Halcon Lighting’s rugged Vapor Tight LED fixtures, crafted to take on the most challenging conditions without breaking a sweat. These robust fixtures are perfect for environments where moisture and debris are part of the daily grind — think steamy industrial sites, active shop floors, dimly lit parking garages, or even the icy confines of walk-in freezers. They’re designed to perform under pressure, maintaining their integrity with an IP65 rating for water resistance and NSF certification for safe use in food processing areas.

Versatility is key with these Vapor Tight LEDs. You can mount them on walls, let them hang from the ceiling, or even suspend them in mid-air to suit your space’s needs. They’re not just tough; they’re also energy-efficient, casting bright light while keeping your energy bills low. When it comes to lighting solutions for demanding settings, Halcon offers a lineup that’s second to none, ensuring you have access to the brightest and most durable lights on the market.

Specification

• Manufacturer: Halcon Lighting
• Fixture Type:LED Troffer lighting fixture
• Lead Time: Ships in 1-2 weeks
• Qualifications: DLC Standard/DLC Premium, ETL/CETL List
• Voltage: AC 120-277V, 120-347V
• CCT Adjustable: 3000K/3500K/4000K/5000K
• Dimmable: 0-10V dimming standard
• Size: 2'x2', 1'x4', 2'x4'
• Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models

Controls Features
  • Daylight Sensor
  • Occupancy Sensor
  • Integral Sensor Receptacle
  • High-end Trim
  • Bluetooth

• Model: HG-L249C
• Warranty: 5 years
• Wattage Adjustable: 20 to 35Watts / 30 to 50Watts
• CRI(Color rendering index):>80
• Lumen output: 4375 lm-6250 lm
• Light efficiency: 125 LP/W
• Aluminum body structure available in White finish
• Mounting: Surface mount, Pendant/Rod mount (accessories sold separately)

Accessories

SENSOR control, Emergency kits, suspension kits.

Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Use Cases

halconlighting office
halconlighting meeting room
halconlighting meeting room
halconlighting meeting room
halconlighting office

Comparison Chart


HG-L249C-22/20W/30W/35W HG-L249C-22/30W/40W/50W HG-L249C-14/30W/40W/50W HG-L249C-24/30W/40W/50W HG-L249C-24/50W/60W/72W
Size 603x603x55mm 1213x303x55mm 1213x603x55mm 1213x603x55mm 1213x603x55mm
Nominal Wattage 20/30/35W 30/40/50W 30/40/50W 30/40/50W 50/60/72W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4375 lm 6250 lm 6250 lm 6250 lm 9000 lm
Nominal Efficacy 125 lm/w 125 lm/w 125 lm/w 125 lm/w 125 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years

Lighting FAQ

  1. Q: Is it CCT selectable and wattage selectable?
    A: Yes, our product offers both CCT and wattage selectable options for versatile usage.
  2. Q: Is it ETL and DLC listed?
    A: Absolutely, our troffer is both ETL and DLC listed, ensuring compliance with the highest standards.
  3. Q: Can this product be installed with emergency and dimming PIR Bluetooth sensor?
    A: Yes, it can be installed with both emergency backup and dimming PIR Bluetooth sensor.
  4. Q: Do you have stock in the USA?
    A: Yes, we maintain stock in the USA for quick delivery.
  5. Q: What’s the lead time?
    A:With our US stock, we can ensure 7-15 day lead times to meet your project requirements.
