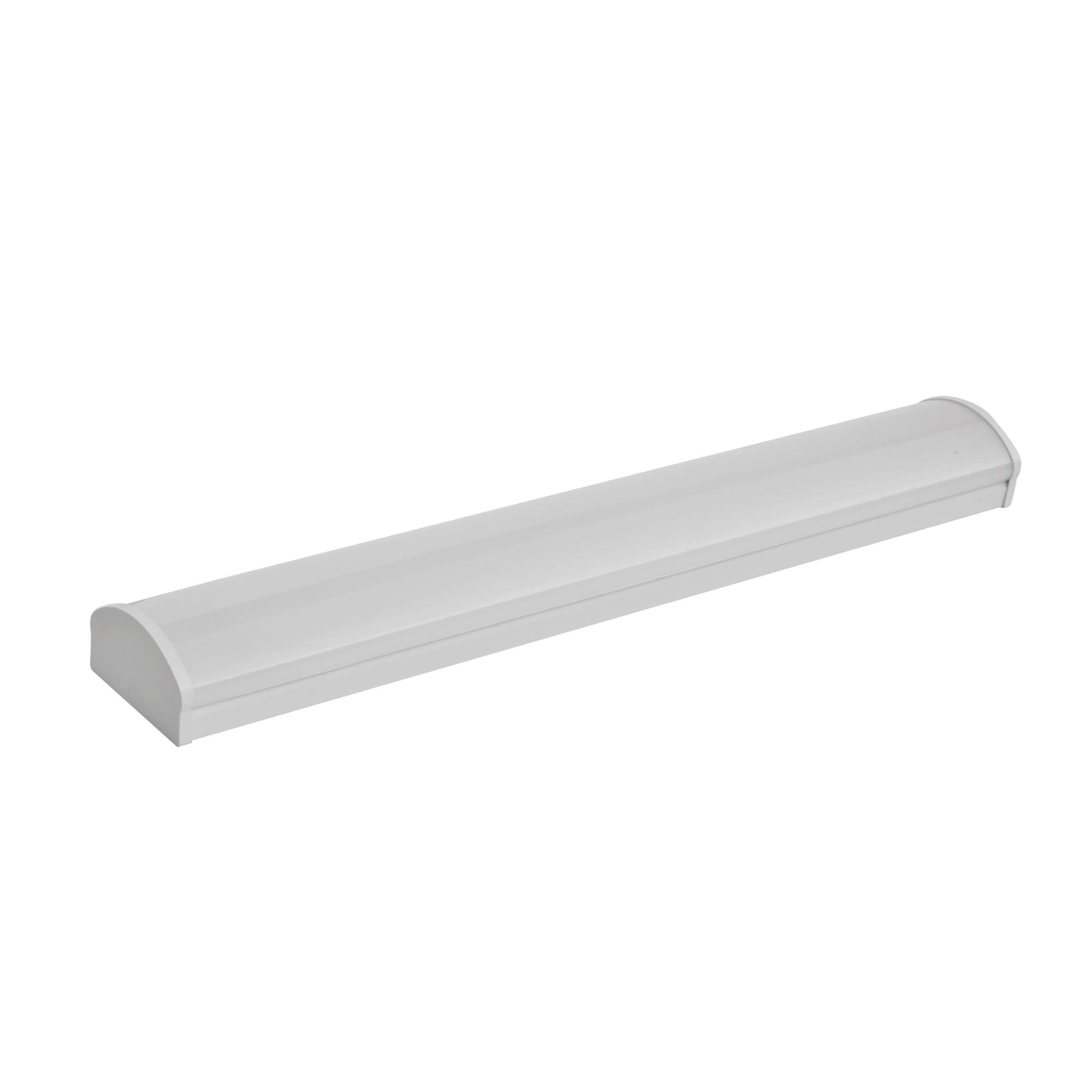

Halcon LED Wrap Light HG-L203 with selectable CCT and wattage for commercial utility applications
4ft LED wraparound light fixture for commercial utility use
4ft LED utility wraparound light fixture assembly diagram
halconlighting
Halcon LED Wrap Light HG-L203 with selectable CCT and wattage for commercial utility applications
4ft LED wraparound light fixture for commercial utility use
4ft LED utility wraparound light fixture assembly diagram

LED wraparound light 2ft 4ft 8ft 2860 to 10400 lumen CCT and watt selectable 120-277V 0-10V dimming ETL DLC listed

Halcon high quality LED Utility Wraps Series is a cost-effective, energy-efficient lighting solution that meets building and safety codes for high-occupancy dwellings, parking garages, stairwells and other commercial utility applications. feature field-Wattage and CCT selectable, and provides an emergency battery back up option. LED Utility Wraps consume less power than fluorescent wrap-around fixtures while delivering high efficacy.

l  20W-80W various wattage selectable,
l  130 LPW, comes in 2ft, 4ft, 8ft
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l  corridors, kitchens, breakrooms, utility work areas and stairways

Mode: HG-L203

Size:2ft, 4ft, 5ft, 6ft, 8ft

Watts:20W, 30W, 40W, 60W, 80W, 100W

Lumen:2500 lm-10000 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Use Cases
Comparison Chart

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Use Cases

halconlighting Office Unit
halconlighting Commercial Store
halconlighting Conference Room

Specification


HG-L203-20W/2ft HG-L203-30W/4ft HG-L203-40W/5ft HG-L203-60W/5ft HG-L203-80W/6ft HG-L203-100W/8ft
Size 588x182x102mm 1188x182x102mm 1188x182x102mm 1488x182x102mm 1488x182x102mm 1788x182x102mm
Nominal Wattage 20W 30W 40W 40W 60W 80W 100W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2400 lm 3600 lm 4800 lm 4800 lm 7200 lm 9600 lm
Nominal Efficacy 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w 120 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years 5 Years
