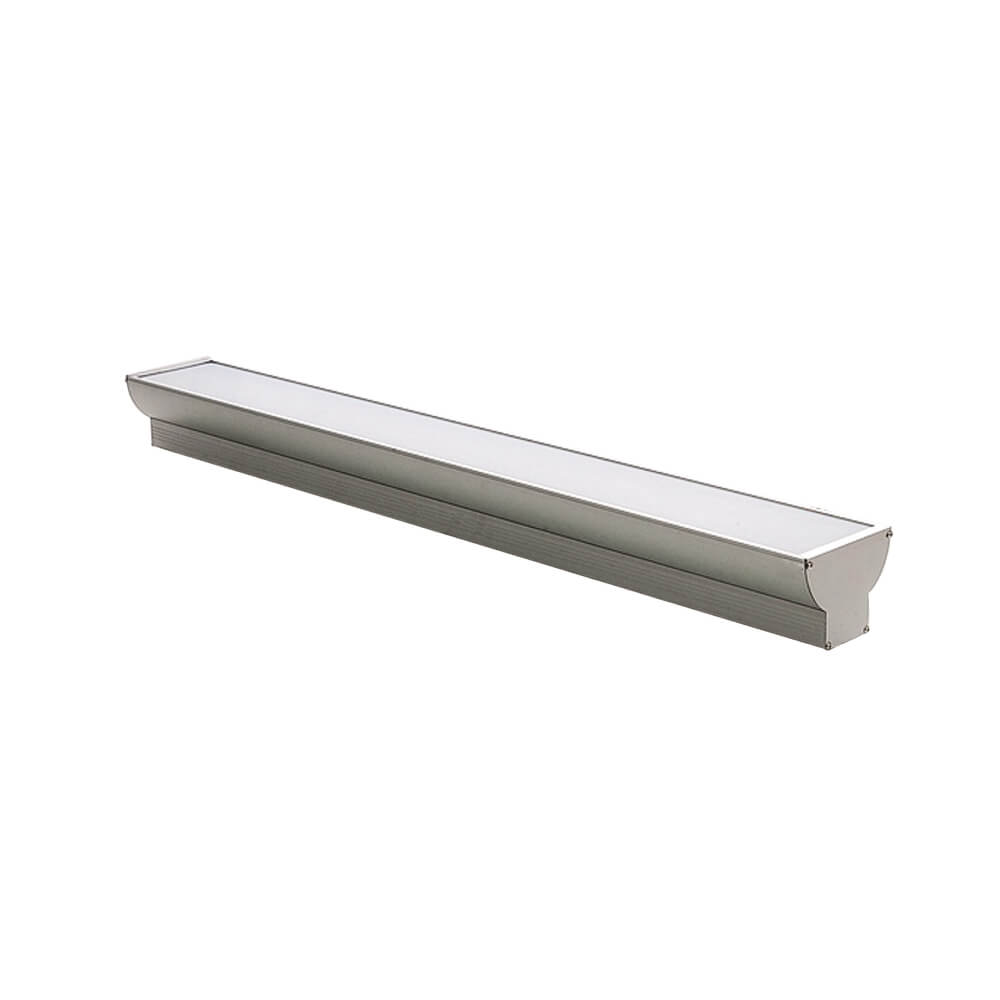

1'x4' LED Pendant Light Up/Down HG-L220 by Halcon Lighting with field-selectable CCT and wattage, sensor control and emergency backup option.
Halcon Lighting LED Pendant Direct/Indirect 1x4 Commercial Lighting Fixture with Advanced Optical System
halconlighting
The Linear Pendant Light 2ft 4ft 8ft 24W-80W 2880 lumen-9200 lumen 120-277V 0-10V dimming emergency and sensor back up
1'x4' LED Pendant Light Up/Down HG-L220 by Halcon Lighting with field-selectable CCT and wattage, sensor control and emergency backup option.
Halcon Lighting LED Pendant Direct/Indirect 1x4 Commercial Lighting Fixture with Advanced Optical System
The Linear Pendant Light 2ft 4ft 8ft 24W-80W 2880 lumen-9200 lumen 120-277V 0-10V dimming emergency and sensor back up

The Linear Pendant Light 2ft 4ft 8ft 24W-80W 2880 lumen-9200 lumen 120-277V 0-10V dimming emergency and sensor back up

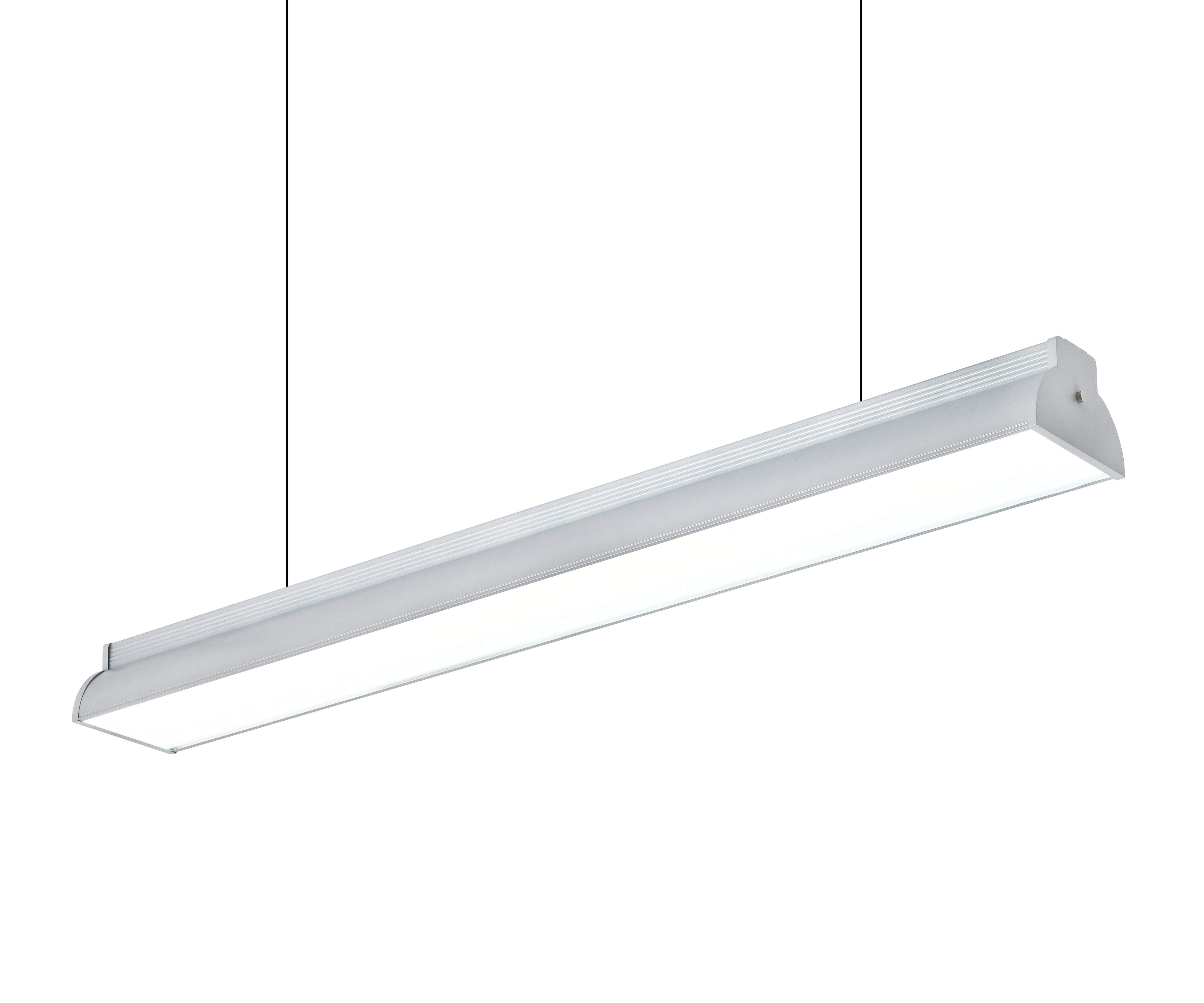

The Direct/indirect up/down pendant by Halcon Lighting is a unique product offering which provides the direct surfaces below and the ambient area above the fixture. The fixture provides both functional light and a design statement to any space where it is utilized. The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on. The 1'x4' suspended Direct/Indirect pendant is a commercial lighting fixture utilizing an advanced LED optical system to achieve superior performance. it features field-CCT selectable & wattage selectable, sensor control ready, emergency back up option.





Mode: HG-L220

Size: 2ft, 4ft, 5ft, 8ft

Watts:20/25/40W, 40W/50W/60W, 50W/60W/70W, 80W/90W/100W


Lumen:2300 lm-11500 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Use Cases
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Use Cases

halconlighting office
halconlighting office
halconlighting office

Specification


P1832-402F P1832-604F P1832-705F P1832-1008F
Size 594x142x111mm 1194x142x111mm 1494x142x111mm 2494x142x111mm
Nominal Wattage 20/25/40W 30W/40W/50W 50W/60W/70W 80W/90W/100W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4800 lm 6000 lm 8400 lm 1200 lm
Nominal Efficacy 120 lm/w 120 lm/w 120 lm/w 120 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years
