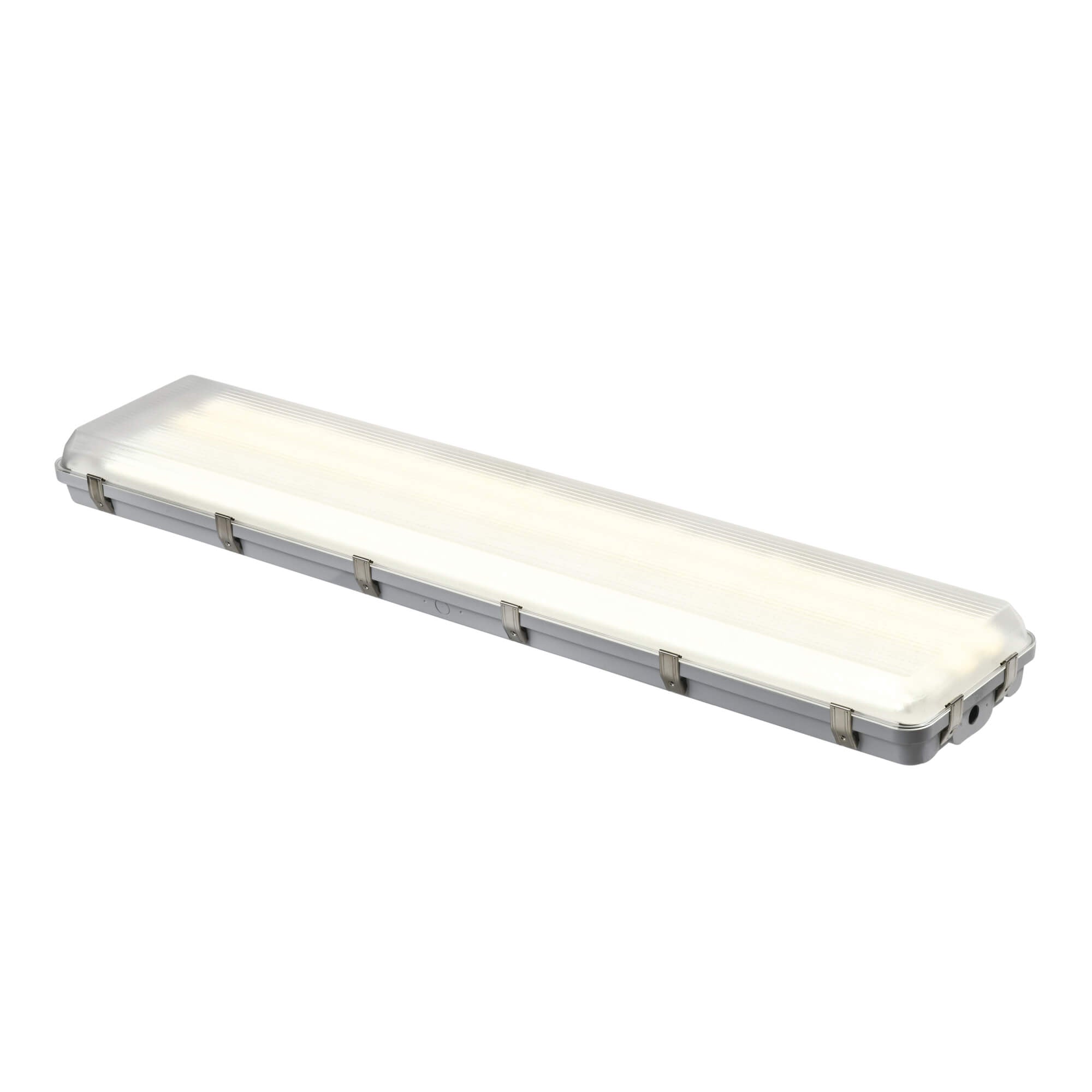

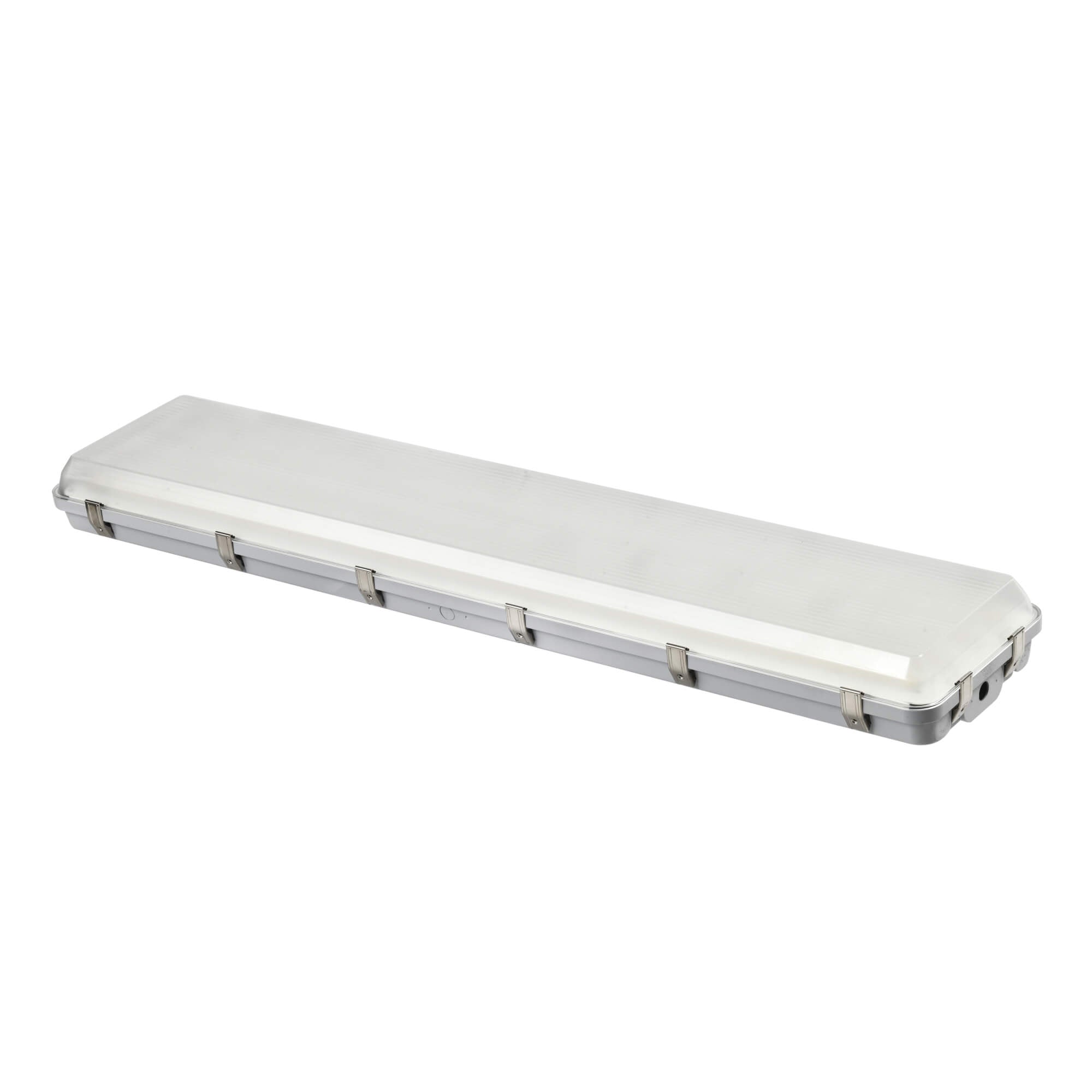

LED Vapor Proof Fixture high bay CCT and Wattage Selectable Dimmable 120-277V Emergency 90-min Battery Backup

Power selection: 100W-150W, multiple power options
130 LPW, comes in 4ft
Waterproof Rating: IP65
Qualifications: DLC Standard/DLC Premium. ETL/CETL List. NSF certified.
Emergency 90-min Battery Backup

Mode: C2202

Size:4ft

Watts:100W/120W/150W

Lumen:19500 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Quantity:

Overview

Specification

Description

Halcon Lighting's Vapor Tight LED light linkable fixtures are suitable for locations that can experience wet, humid or severe conditions such as industrial locations, metal or wood shop, parking garages, walkways, cold storage facilities with ease, it is IP65 rated and NSF certified which also can be used inside food processing plants.

Available for wall mounted, ceiling and suspending applications. These Vapor Tight lights can provide outstanding value when it comes to energy efficiency.

Halcon has the solution to meet your harshest lighting needs with a vast inventory of the industry's best lighting option.

Specification

Manufacturer： Halcon Lighting
Fixture Type：LED Vapor Tight Light
Lead Time: Ships in 1-2 weeks
Qualifications: DLC Standard/DLC Premium, ETL/CETL List
Voltage: Universal voltage 120-277V
CCT Adjustable: 3000K/3500K/4000K/5000K
Dimmable: 0-10V dimming standard
Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models

Controls Features

Daylight Sensor
Occupancy Sensor
Integral Sensor Receptacle
High-end Trim
Bluetooth

Model: C2202
Warranty: 5 years
Wattage Adjustable: 100 to 150Watts
CRI(Color rendering index): >80
Lumen output: 19500 lm

Accessories

SENSOR control, Emergency kits, suspension kits.

Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Specification

	C2318-182F	C2318-364F	C2318-505F	C2318-608F
Size	1200x260x105mm	1200x260x105mm	1200x260x105mm	1200x260x105mm
Nominal Wattage	100W	120W	150W	150W
InputVoltage	AC 120-277V, 120-347V	AC 120-277V, 120-347V	AC 120-277V, 120-347V	AC 120-277V, 120-347V
Lumen Delivered	19500 lm	19500 lm	19500 lm	19500 lm
Nominal Efficacy	130lm/W	130lm/W	130lm/W	130lm/W
CCT	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K
CRI	>80	>80	>80	>80
Power Factor	>0.9	>0.9	>0.9	>0.9
Dimming	0-10V	0-10V	0-10V	0-10V
Operating Temperature	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty	5 Years	5 Years	5 Years	5 Years

Lighting FAQ

Q: Is it CCT selectable and wattage selectable?
A: Yes, our product offers both CCT and wattage selectable options for versatile usage.
Q: Is it ETL and DLC listed?
A: Absolutely, our troffer is both ETL and DLC listed, ensuring compliance with the highest standards.
Q: Can this product be installed with emergency and dimming PIR Bluetooth sensor?
A: Yes, it can be installed with both emergency backup and dimming PIR Bluetooth sensor.
Q: Do you have stock in the USA?
A: Yes, we maintain stock in the USA for quick delivery.
Q: What’s the lead time?
A:With our US stock, we can ensure 7-15 day lead times to meet your project requirements.
