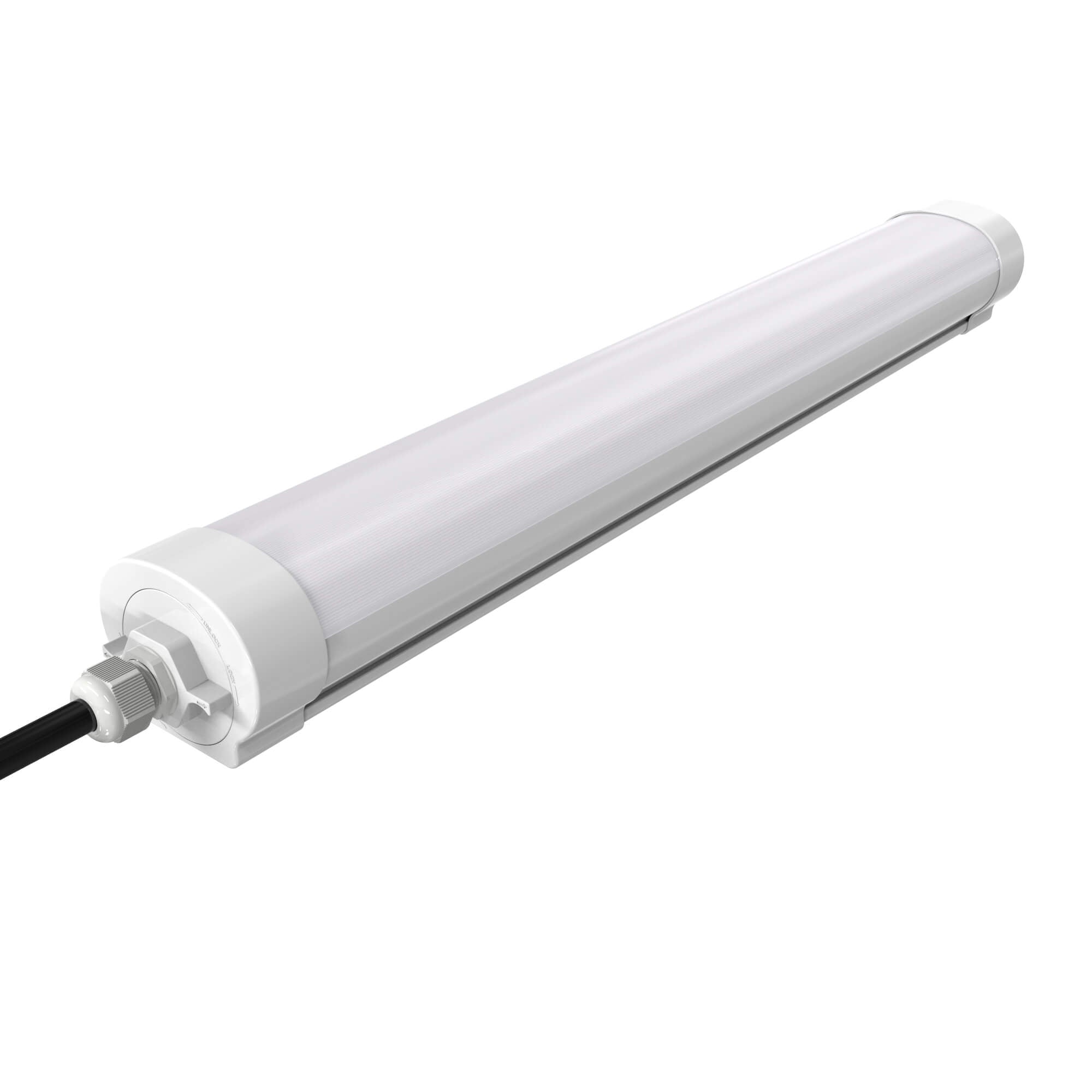

Vapor Tight LED Light (IP65) C2318
Vapor Tight LED Light (IP65) C2318
Vapor Tight LED Light (IP65) C2318 pulling off
Vapor Tight LED Light (IP65) details C2318
Vapor Tight LED Light (IP65) C2318 Size
Vapor Tight LED Light (IP65) C2318
Vapor Tight LED Light (IP65) C2318
Vapor Tight LED Light (IP65) C2318
halconlighting
Vapor Tight LED Light (IP65) C2318
Vapor Tight LED Light (IP65) C2318
Vapor Tight LED Light (IP65) C2318 pulling off
Vapor Tight LED Light (IP65) details C2318
Vapor Tight LED Light (IP65) C2318 Size
Vapor Tight LED Light (IP65) C2318
Vapor Tight LED Light (IP65) C2318
Vapor Tight LED Light (IP65) C2318

2ft 4ft 8FT LED Vapor Tight Light 120-100-80W tunable 15600lm LED Vapor Proof Lighting Fixture IP66 100-277V LED Outdoor Shop Light Waterproof for Parking Garage Car Wash Warehouse

Halcon Lighting's Vapor Tight LED light linkable fixtures are suitable for locations that can experience wet, humid or severe conditions such as industrial locations, metal or wood shop, parking garages, walkways, cold storage facilities with ease, it is IP65 rated and NSF certified which also can be used inside food processing plants. Available for wall mounted, ceiling and suspending applications. These Vapor Tight lights can provide outstanding value when it comes to energy efficiency. Halcon has the solution to meet your harshest lighting needs with a vast inventory of the industry's best lighting option.

Mode: C2318

Size:2ft, 4ft, 5ft, 8ft

Watts:18W/36W/50W/60W

Lumen:1950 lm-7800 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


C2318-182F C2318-364F C2318-505F C2318608F
Size 660x85.2x70.6mm 1260x85.2x70.6mm 1560x85.2x70.6mm 2440x85.2x70.6mm
Nominal Wattage 18W 36W 50W 60W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 2340 lm 4680 lm 6500 lm 7800 lm
Nominal Efficacy 130lm/W 130lm/W 130lm/W 130lm/W
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years
