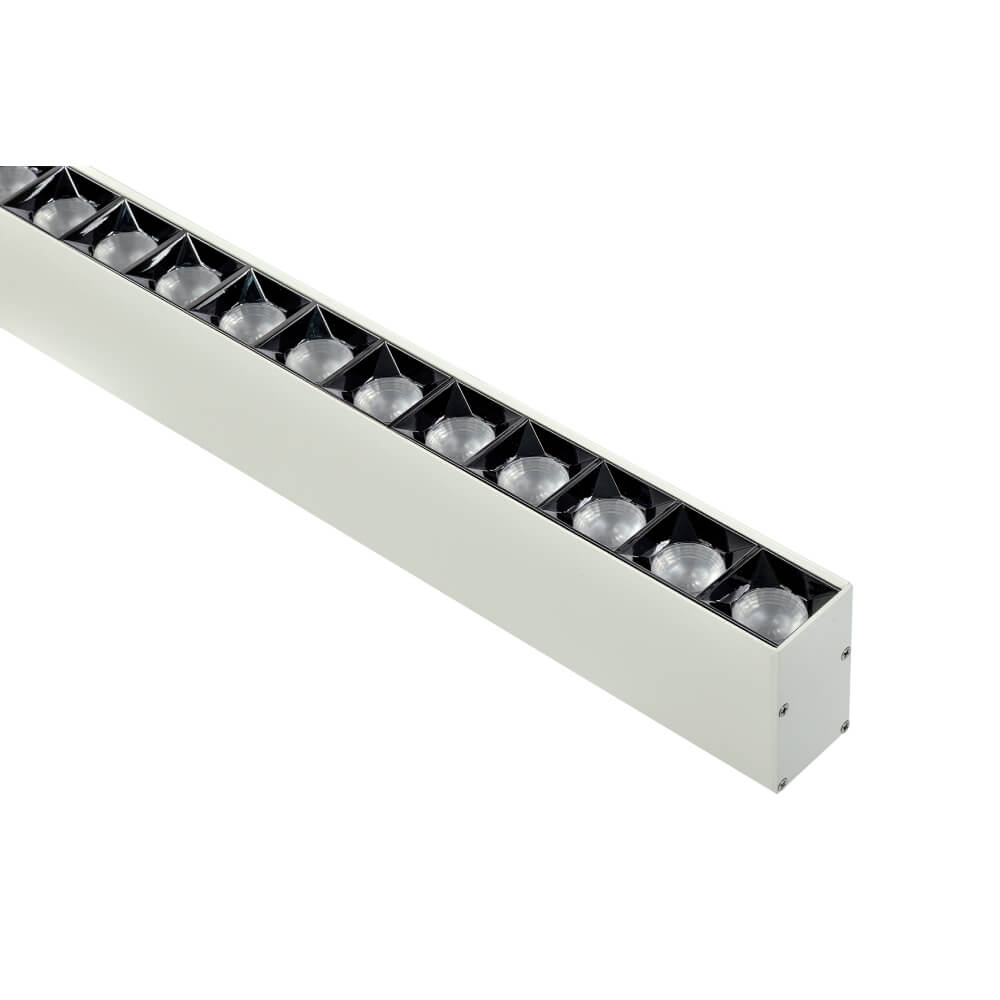

Suspended 1'x4' LED Pendant Light Up/Down P2001A by Halcon Lighting with advanced optical system and emergency backup option

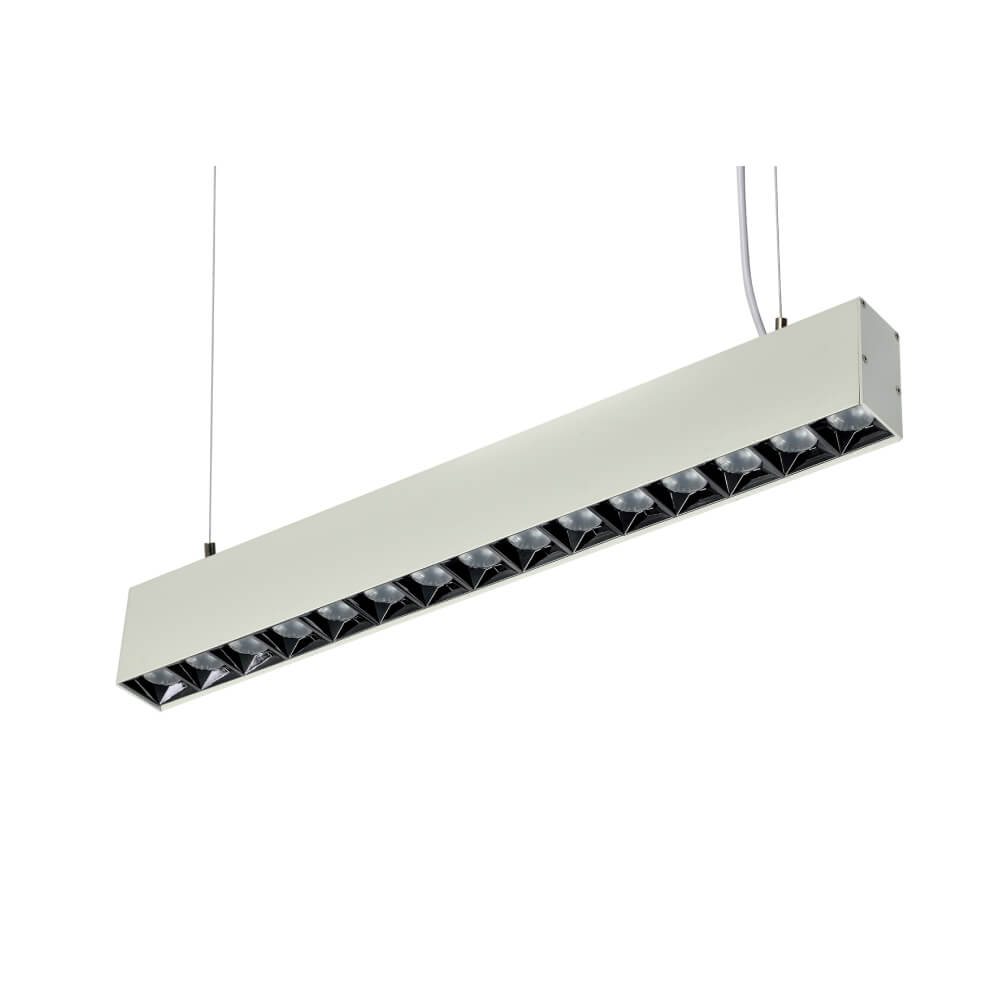

Suspended LED Pendant Light Up/Down P2001A by Halcon Lighting with Direct/Indirect Illumination and Field-CCT Selectable Feature
1'x4' LED Pendant Direct/Indirect Up/Down Light by Halcon Lighting with advanced optical system for commercial lighting.
1x4 suspended LED Pendant Light Up/Down P2001A by Halcon Lighting with selectable wattage and sensor control options
Halcon Lighting direct/indirect up/down LED Pendant Light P2001A with selectable CCT and wattage for commercial use
Halcon Lighting LED Pendant Light Up/Down P2001A with selectable wattage and sensor control for commercial spaces
Suspended LED Pendant Light Up/Down P2001A by Halcon Lighting with transparent design and efficient performance
halconlighting
Suspended 1'x4' LED Pendant Light Up/Down P2001A by Halcon Lighting with advanced optical system and emergency backup option
Suspended LED Pendant Light Up/Down P2001A by Halcon Lighting with Direct/Indirect Illumination and Field-CCT Selectable Feature
1'x4' LED Pendant Direct/Indirect Up/Down Light by Halcon Lighting with advanced optical system for commercial lighting.
1x4 suspended LED Pendant Light Up/Down P2001A by Halcon Lighting with selectable wattage and sensor control options
Halcon Lighting direct/indirect up/down LED Pendant Light P2001A with selectable CCT and wattage for commercial use
Halcon Lighting LED Pendant Light Up/Down P2001A with selectable wattage and sensor control for commercial spaces
Suspended LED Pendant Light Up/Down P2001A by Halcon Lighting with transparent design and efficient performance

up and down led linear architectural pendant light 20W-80W 2300 lumen to 9200 lumen 1ft 2ft 3ft 4ft 6ft 8ft 120-277V 0-10V dimmable emergency back up and bluetooth sensor control ready

The Direct/indirect up/down pendant by Halcon Lighting is a unique product offering which provides the direct surfaces below and the ambient area above the fixture. The fixture provides both functional light and a design statement to any space where it is utilized. The unique design is nearly transparent luminaire when off and excellent uniformity and efficiency when on. The 1'x4' suspended Direct/Indirect pendant is a commercial lighting fixture utilizing an advanced LED optical system to achieve superior performance. it features field-CCT selectable & wattage selectable, sensor control ready, emergency back up option.

l  20W-80W various wattage selectable,
l  125 LPW, comes in 1ft, 2ft, 3ft, 4ft, 6ft, 8ft
l  Bluetooth control ready
l  Emergency back up compatibility
l  DLC NLC qualified, attractive for large utility rebates
l  Office, education, health care, hospitality and retail interiors

Mode: P2001A

Size: 2ft, 4ft, 5ft, 8ft

Watts:20/25/40W, 40W/50W/60W, 50W/60W/70W, 80W/90W/100W

Lumen:2300 lm-11500 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Get A Quote
Overview
Specification

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Specification


P1832-402F P1832-604F P1832-705F P1832-1008F
Size 573x43x75mm 1206x43x75mm 1506x43x75mm 2445x43x75mm
Nominal Wattage 20/25/40W 40W/50W/60W 50W/60W/70W 80W/90W/100W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4600 lm 6900 lm 8050 lm 11500 lm
Nominal Efficacy 115 lm/w 115 lm/w 115 lm/w 115 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years
