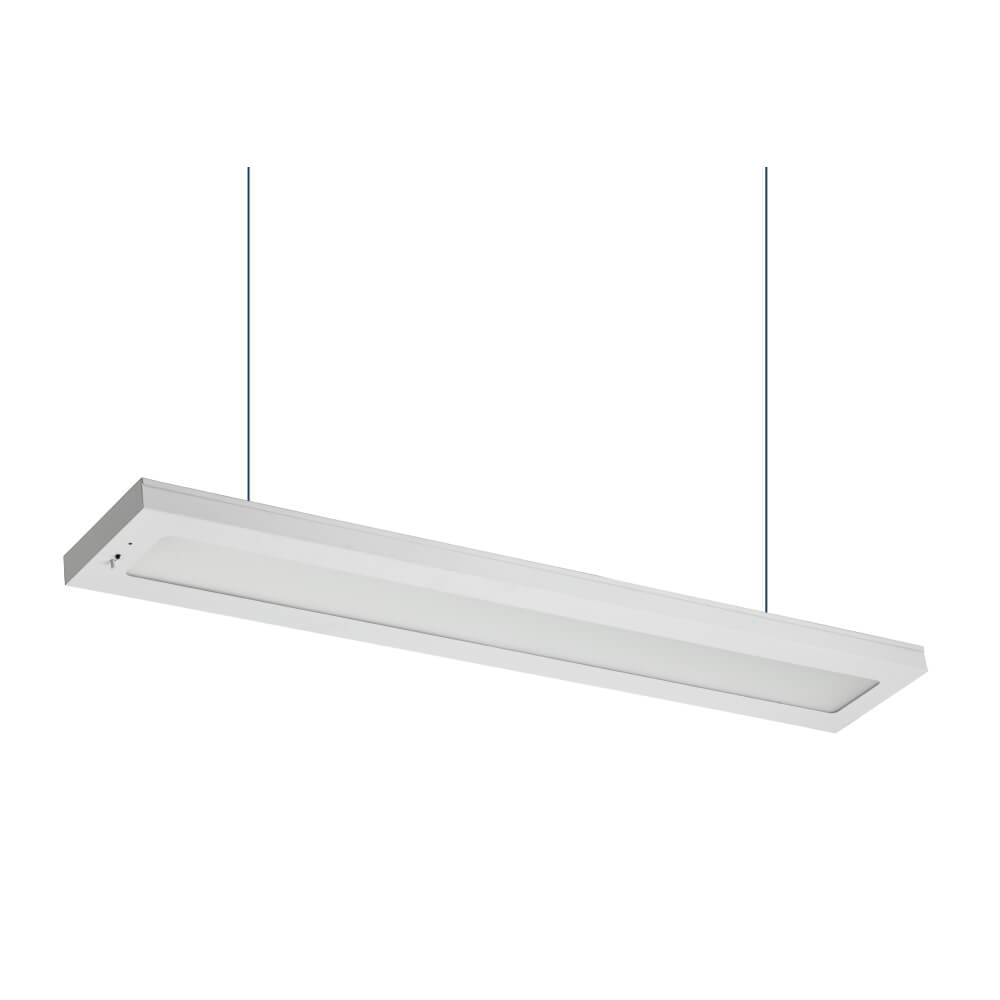

LED Pendant Light for commercial space
Halcon P1832 LED pendant light with direct and indirect lighting feature for modern workspaces
LED Pendant Light Up/Down P1832
halconlighting

Linkable linear LED pendant up and down light 2ft 4ft 8ft combination with different shape 120-277V 0-10V dimming ETL and DLC listed emergency and sensor control ready

Experience the Best of Both Worlds with Halcon's Innovative Direct/Indirect LED Pendant

Illuminate any commercial space beautifully with Halcon's P1832 LED pendant light. This unique fixture provides the perfect balance of directed task lighting and soft, ambient glow.

Halcon engineered the P1832 with a cutting-edge 70/30 split design. 70% of the light shines down directly from the linear LEDs to brightly light work areas below. The remaining 30% illuminates the space above, creating a warm, inviting ambiance.

Built for Flexibility, Scaled for Your Needs

The P1832 comes in multiple sizes from 2-8 feet to fit your space requirements. Our field-selectable CCTs (3000K-5000K) and wattages allow you to customize both the color temperature and brightness as needed.

This LED pendant seamlessly integrates sensor controls, emergency backup and dimming capabilities. With an exceptional 115 lumens per watt, the P1832 achieves up to 11500 lumens to replace outdated 400W+ metal halides. Dramatically boost lighting and energy efficiency.

Sleek, Sophisticated Styling

When off, the P1832 is an understated, transparent fixture that blends into any decor. Power it on to reveal exceptional uniformity and a clean, modern aesthetic.

The commercial-grade P1832 outperforms older fluorescent or HID alternatives. Upgrade your space with brilliant LED technology and customizable performance from Halcon Lighting.

Mode: P1832

Size: 2ft, 4ft, 5ft, 8ft

Watts:20/25/40W, 40W/50W/60W, 50W/60W/70W, 80W/90W/100W

Lumen:2300 lm-11500 lm

CCT:3000K/3500K/4000K/5000K

Qualifications: DLC Standard/DLC Premium.
ETL/CETL List

Overview
Use Cases
Specification
Video

Design and Installation

Feactures

Available Switchable Color and Adjustable Lumen Technology. Faster installation and cleanup
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• -4°F to 122°F (-20°C to 50°C), except fixtures with EM option
• Fixture may be surface mounted or pendant/Rod mounted
(accessories sold separately)

Controls Features


• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-end Trim
• Bluetooth

Accessories

SENSOR control, Emergency kits, suspension kits.

Use Cases

halconlighting meeting room
halconlighting meeting room
halconlighting meeting room

Specification


P1832-402F P1832-604F P1832-705F P1832-1008F
Size 606x170x50mm 1206x170x50mm 1506x170x50mm 2445x170x50mm
Nominal Wattage 20/25/40W 40W/50W/60W 50W/60W/70W 80W/90W/100W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 4600 lm 6900 lm 8050 lm 11500 lm
Nominal Efficacy 115 lm/w 115 lm/w 115 lm/w 115 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80 >80
Power Factor >0.9 >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years 5 Years
